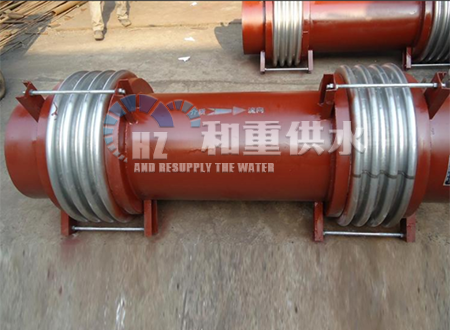

小拉杆橫向波紋補償器産品介紹： 小拉杆橫向波紋補償器由兩段波紋管、中間接管及帶有限螺母的小拉杆等零件組成，它在吸收管系任意平面内的橫向位移，同時吸收軸向位移。小拉杆
|
公稱通徑 |
壓力0.6Mpa | 壓力1.0Mpa | 壓力1.6Mpa |
有效面積 cm2 |
焊接端管 mm |
總長 1mm |
|||
|
軸向位移/ 軸向剛度 |
橫向位移 /橫向剛度 |
軸向位移/ 軸向剛度 |
橫向位移/橫向剛度 |
軸向位移/ 軸向剛度 |
橫向位移/ 橫向剛度 |
||||
| 100 | 32/210 | 96/8.0 | 28/252 | 86/96 | 26/302 | 78/12 | 154 | 108×4 | 1000 |
| 200/2.0 | 180/25 | 162/3.1 | 1500 | ||||||
| 306/0.89 | 27/11 | 284/1.3 | 2000 | ||||||
| 411/0.50 | 370/06 | 333/0.75 | 2500 | ||||||
| 125 | 33/170 | 83/18 | 31/204 | 78/216 | 29/245 | 75/25.9 | 180 | 133×4 | 1000 |
| 115/6.8 | 109/82 | 103/9.8 | 1500 | ||||||
| 198/3.5 | 188/4.2 | 178/5.0 | 2000 | ||||||
| 269/1.8 | 255/2.2 | 242/2.6 | 2500 | ||||||
| 150 | 32/290 | 65/21 | 30/348 | 61/252 | 27/417 | 58/30.2 | 299 | 159×45 | 1000 |
| 136/54 | 129/65 | 122/7.8 | 1500 | ||||||
| 107/2.4 | 197/28 | 186/3.5 | 2000 | ||||||
| 279/1.4 | 265/168 | 251/2.1 | 2500 | ||||||
| 200 | 48/326 | 72/47 | 43/391 | 68/56.4 | 40/469 | 65/70.5 | 531 | 219×6 | 1000 |
| 160/11 | 152/13.2 | 144/16.5 | 1500 | ||||||
| 250/5.0 | 237/60 | 225/7.5 | 2000 | ||||||
| 341/2.8 | 324/3.4 | 291/4.1 | 2500 | ||||||
| 250 | 46/400 | 127/20 | 43/480 | 114/25 | 38/576 | 108/30 | 774 | 273×8 | 1500 |
| 199/9.0 | 179/108 | 170/13.5 | 2000 | ||||||
| 271/5.0 | 257/60 | 231/7.5 | 2500 | ||||||
| 343/3.2 | 325/38 | 293/4.6 |
3000 |
||||||
